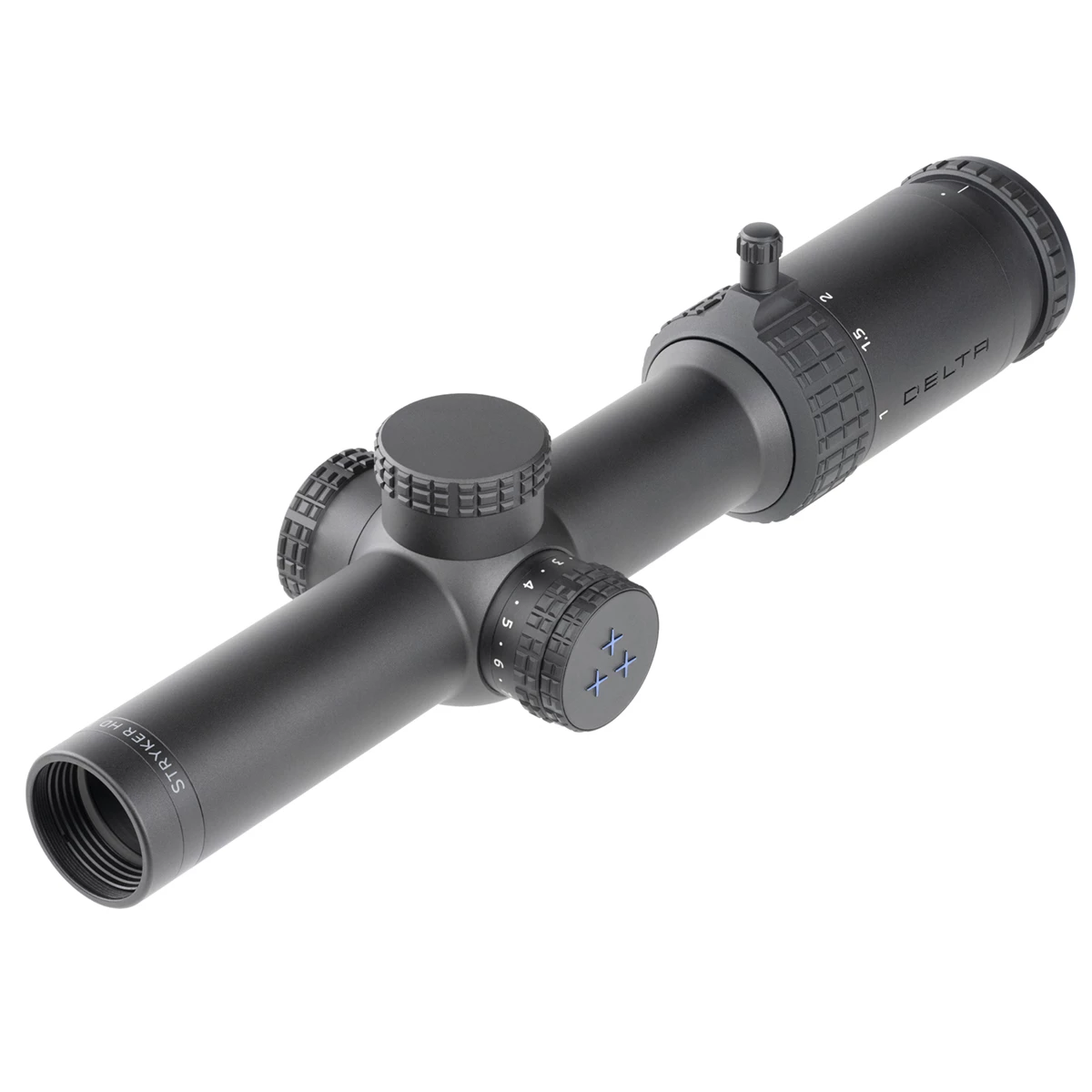

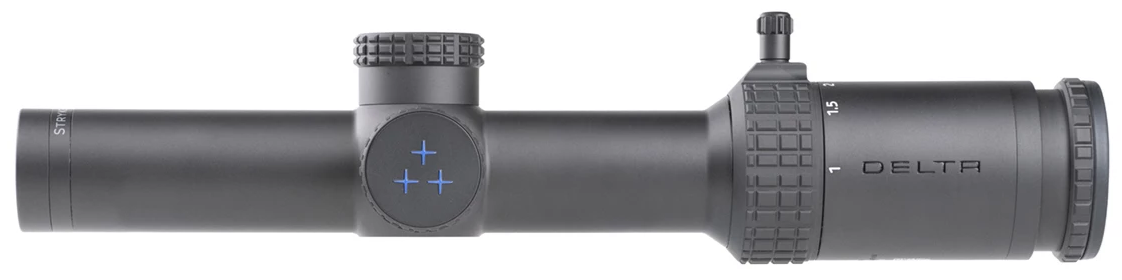

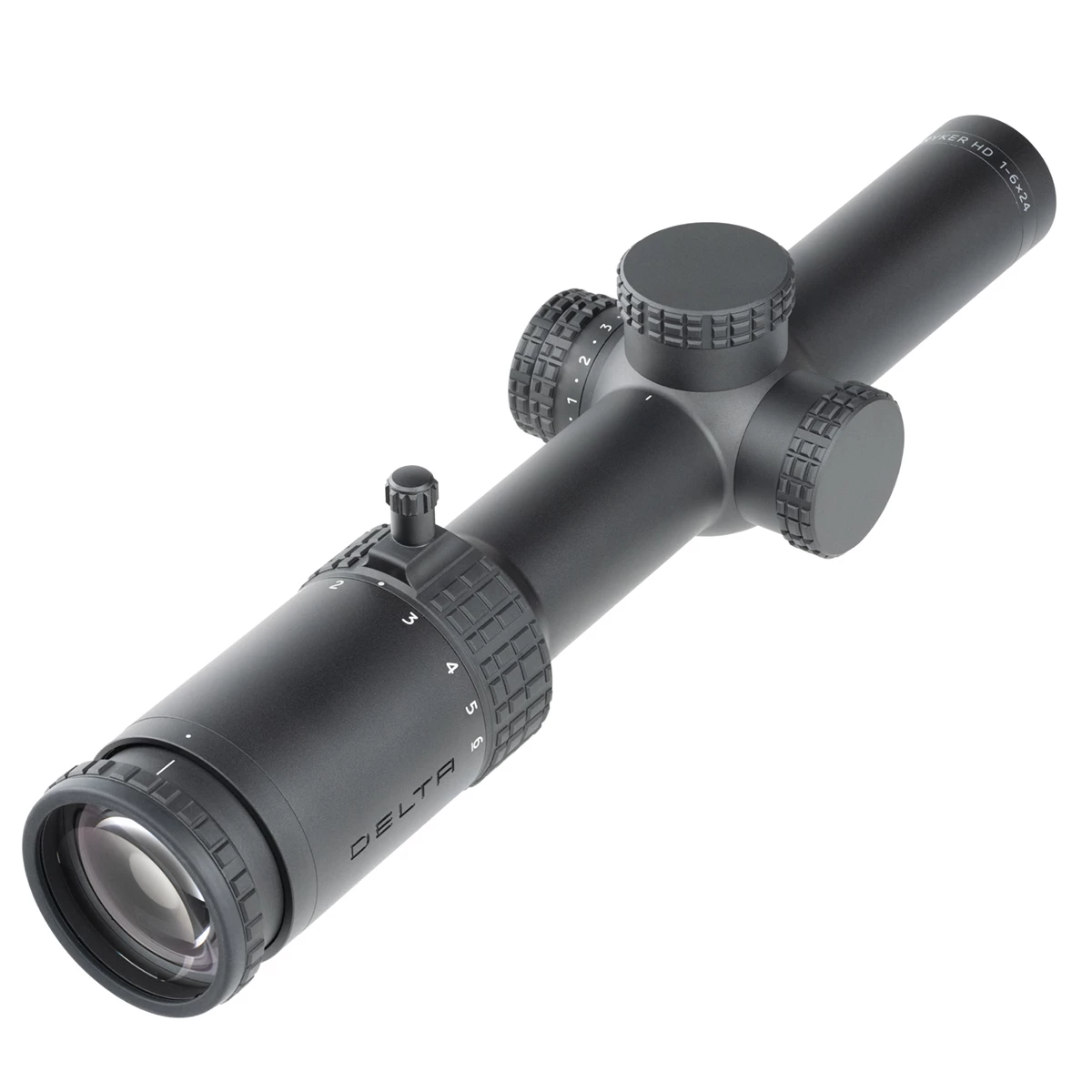

The Delta Optical Stryker HD 1-6x24 riflescope has been designed for AR rifles for both dynamic and recreational shooting competitors. The very large field of view (36m / 100m) with 1x magnification ensures target tracking as easy as with open collimators but is more precise. The field of view puts this model at the forefront. In contrast to collimators, the Delta Optical Stryker HD 1-6x24 riflescope with it's 6x magnification allows to recognize the target and make a precise shot at much further distances.
Low profile closed turrets protect against accidental misalignment of the crosshair settings. Zeroing the turrets does not require additional tools - after setting the reticle properly, just raise the turret knob, set it to ZERO position and click back. The illuminated dot in the center of the reticle ensures quick target tracking at close distances. To facilitate a quick change of magnification, the scope has been equipped with a special adjustment lever.
Second plane DSMR reticle does not change with the the zoom change, only the size of the target changes. Thanks to this, the aiming point at the example distance of 300m obscures only 5.28 cm of the target. The riflescope is designed in Poland and manufactured in Japan using aviation grade aluminum alloys.
Specification
| Minimum magnification: |
1x |
| Maximum magnification: |
6x |
| Lens diameter: |
24 mm |
| Reticle name: |
DSMR |
| Grid position: |
second focal plane (SFP) |
| Mesh Backlight: |
central point |
| Distance from the eye: |
86 - 104 mm |
| Exit pupil: |
24 - 4 mm |
| Linear field of view at 100 m: |
35.6 - 5.9 m |
| Angular field of view: |
20.24 - 3.45 ° |
| Turret type: |
covered |
| Vertical adjustment range: |
30 MRAD |
| Horizontal adjustment range: |
30 MRAD |
| Single click adjustment: |
0.1 MRAD |
| One turret rotation: |
10 MRAD |
| Parallax adjustment: |
NO |
| Diopter correction: |
-2D/+3D |
| ZeroStop: |
NO |
| Length: |
256 mm |
| Tube diameter: |
30 mm |
| Lens outer diameter: |
30 mm |
| Eyepiece outer diameter: |
43.5 mm |
| Libra: |
490 g |
| Sun visor thread: |
M58x0.75mm |
| Water resistance: |
0.3 kg/cm2 |
| Nitrogen filling: |
Yes |
| Operating temperature: |
-20 / 71 °C |
| Shock resistance: |
6500 J |
| Battery type: |
CR2032 |
| Warranty period: |
120 months |
